Crowd Actor

ACrowdToolkitActor (display name Crowd Toolkit Actor) is the one object you interact with. It wraps the simulation library as an Actor: every tunable lives as a property in its details panel, and every operation - spawn, order, query, walls - is a Blueprint-callable function.

Each actor owns its own independent simulation (created when the actor initializes, in PostInitializeComponents, and destroyed on EndPlay), so any number of crowd actors can run side by side. All positions are in world space; the simulation's X/Y maps directly to world X/Y, and Z is tracked per agent.

TIP

You usually don't place this yourself - the subsystem adopts a placed instance or spawns one, and you reach it with GetCrowd. Place a BP_Crowd when you want to configure it in the details panel.

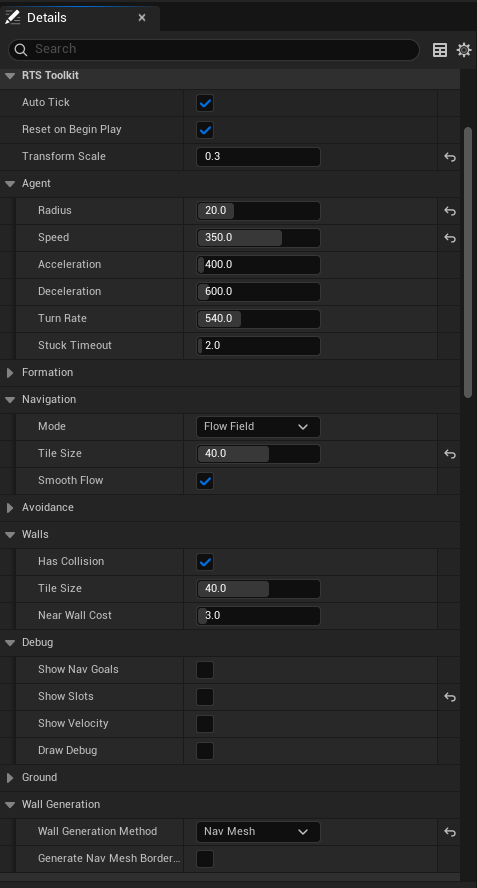

Configuration properties

All config properties are EditAnywhere + BlueprintReadWrite. They are copied into the simulation every tick (via ApplyConfig), so changing one at runtime takes effect immediately. Clamp ranges below are the valid limits; the simulation re-clamps on apply.

Agent

Property	Default	Range	Description
Radius	`15`	`1 – 60`	Agent radius. Individual agents can be resized with `SetAgentsRadius`.
Speed	`100`	`≥ 0`	Default max speed for agents with no per-agent override. Uncapped on top.
Acceleration Time	`0.25`	`0 – 10`	Seconds for an agent to go from standstill to its max speed. Relative to each agent's speed, so changing Speed (or a per-agent override) keeps the same ramp-up feel. `0` = instant.
Deceleration Time	`0.15`	`0 – 10`	Seconds to stop from max speed; also shapes the arrival braking curve so stops ease out. Relative to each agent's speed, like Acceleration Time. `0` = instant.
Turn Rate	`540`	`0 – 1440`	Max heading change, deg/s - agents arc into new directions instead of flipping. Also paces how fast rendered facing swings, including toward a facing target. `0` = unlimited.
Stuck Timeout	`2`	`0 – 30`	Seconds without progress before `OnAgentsStuck` reports an ordered agent (re-fires each interval). `0` disables stuck events.

Formation

See Formations.

Property	Default	Range	Description
Shape	`Blob`	enum	`Blob`, `Box`, or `Wedge`.
Settle Radius	`10`	`1 – 50`	How close to its slot an agent must be to count as settled.
Slot Spacing	`1.1`	`0.5 – 2`	Slot spacing, in agent diameters.

See Navigation.

Property	Default	Range	Description
Mode	`Flow Field`	enum	`None`, `Flow Field`, or `Spatial A*`.
Tile Size	`20`	`4 – 64`	World units per routing cell.
Smooth Flow	`true`	bool	Flow Field only. Gradient flow vs nearest-of-8 directions.

Avoidance

See Avoidance. Always on - these only tune it.

Property	Default	Range	Description
Strength	`150`	`0 – 1000`	Mutual push between two travelling agents.
Settle Push	`50`	`0 – 1000`	How strongly a settled agent steps aside for a passer-by.

Both are global defaults; SetTeamAvoidance overrides them for a pair of teams at runtime.

Walls

See Wall Generation.

Property	Default	Range	Description
Has Collision	`true`	bool	Gates physical wall collision. Off = walls still block pathfinding but agents can pass through.
Tile Size	`40`	`4 – 64`	World units per wall tile.
Near Wall Cost	`3`	`1 – 20`	Pathfinding traversal multiplier for open cells next to walls. `1` disables the bias.
Wall Generation Method	`Nav Mesh`	enum	Wall source on `BeginPlay`: `None` or `Nav Mesh`.
Sync Walls With Nav Mesh	`true`	bool	Re-sync nav-mesh walls whenever the navigation mesh finishes a runtime rebuild (Nav Mesh method only). Manually stamped tiles are untouched.
Generate Nav Mesh Border Walls	`false`	bool	Also wall off the nav mesh's outer border, sealing agents inside it.

Ground

See Ground Snapping.

Property	Default	Description
Snap To Ground	`false`	Re-trace the ground under each agent every tick and glue its Z to the hit. Off = agents keep their spawn Z.
Ground Trace Channel	`Visibility`	Collision channel the ground trace runs against.
Ground Trace Up Limit	`200`	Trace starts this far above the agent's current Z.
Ground Trace Down Limit	`200`	Trace ends this far below the agent's current Z. On a miss the agent keeps its Z.
Ground Offset	`0`	Added to the hit to get the agent's Z (e.g. mesh half-height).
Ground Trace Ignored Actors	`[]`	Actors the trace ignores. Add your crowd renderer here (see the self-collision trap).
Max Ground Traces Per Tick	`0`	Cap on ground re-traces per tick (round-robin). `0` = trace every agent every tick.
Align Transforms To Ground	`false`	Tilt rendered transforms to the traced ground normal (slopes). Needs Snap To Ground.

General

Property	Default	Description
Auto Tick	`true`	Advance the simulation automatically each frame in `Tick`. Turn off to drive it yourself with `SimTick`.
Transform Scale	`1`	Uniform scale applied to transforms from `GetAgentTransforms`.

Debug

There is no master switch: each overlay is drawn every tick when its own flag is on, so untick them all to draw nothing. All default to off and are compiled out of Shipping builds. See Debugging.

Property	Default	Description
Draw Walls	`false`	The wall grid, one gray box per tile.
Draw Agents	`false`	Every agent as a sphere of its effective radius (green when settled, white while moving).
Show Slots	`false`	The slot rings agents settle onto.
Show Nav Goals	`false`	Each agent's shared formation anchor.
Show Velocity	`false`	Each agent's velocity vector.
Show Teams	`false`	A coloured dot above every agent, one colour per team id, with team-id labels on the agents nearest the camera.
Team Label Distance	`2000`	How far from the camera team-id labels are drawn. The dots are drawn regardless; only the text is limited. Needs Show Teams.
Show Flow Field	`false`	Per-cell flow arrows of every active flow field. Only populated in Flow Field navigation mode.
*Show A Paths**	`false`	Each agent's current cached route as a polyline. Only populated in Spatial A* navigation mode.

Functions

Simulation control

void SimTick(float DeltaSeconds);

Advance the simulation by DeltaSeconds (pushes the current config first). Called automatically each frame when Auto Tick is on; call it yourself when you've turned Auto Tick off and want to drive the step manually. DeltaSeconds is clamped and substepped internally, so a frame hitch slows simulated time briefly instead of letting agents tunnel through walls.

void ResetSimulation();

Clear all agents, walls and pathfinding/avoidance caches (config is kept). Pending spawned/removed event batches are discarded - the indices they named no longer exist.

void ApplyConfig() const;

Copy the actor's config properties into the simulation. Done automatically each tick; rarely called directly.

Spawning & removing

int32 SpawnAgent(const FVector& Position);

Spawn one agent at Position and return its stable id (-1 if the spawn failed). Position.Z becomes its initial tracked Z; the simulation itself takes only X/Y. Reported via OnAgentsSpawned.

TArray<int32> SpawnAgentGrid(const FVector& Origin, int32 Cols, int32 Rows, float Spacing);

Spawn a Cols × Rows grid of agents starting at Origin, Spacing apart. Returns the spawned agents' stable ids, one per agent.

void RemoveAgent(int32 Index);

Queue the agent at Index for removal. Removals are deferred: the simulation applies the queued batch (sorted, swap-and-pop) at the start of the next tick, so indices stay stable between ticks and any set of agents can be removed in any order. Until that tick the agent is still present (count and getters include it). Out-of-range indices and re-queues of an already-queued index are ignored. Reported via OnAgentsRemoved before the removing tick, while the index is still valid.

int32 GetAgentCount() const;

Number of agents currently in the simulation (includes agents queued for removal until the next tick applies the removal).

Identity - indices & ids

See Indices & Stable IDs. Lookups that miss return -1.

TArray<int32> GetAgents() const;

Every agent's index (0 … GetAgentCount()-1, in storage order) - a ready-made "all agents" list to feed the batch getters and order functions.

int32 GetAgentId(int32 Index) const;   // stable id at Index, -1 if out of range
int32 GetAgentIndex(int32 Id) const;   // current index of Id, -1 if no such agent

TArray<int32> GetAgentsIds(const TArray<int32>& Indices) const;   // id per index, -1 per out-of-range
TArray<int32> GetAgentsFromIds(const TArray<int32>& Ids) const;   // index per id, -1 per unknown

Batch forms - translate a whole selection in one call. Output is parallel to the input.

Per-agent getters

Each getter takes an optional index mask: pass an empty array to get every agent in storage order; pass a list of indices to get exactly those, in mask order (an out-of-range index yields a zeroed entry, so the output always lines up 1:1 with the mask). All the getters below are parallel - element i of each refers to the same agent.

TArray<FVector> GetAgentPositions(const TArray<int32>& Indices) const;

World positions, including each agent's tracked Z.

TArray<FTransform> GetAgentTransforms(const TArray<int32>& FilterIndices) const;

Render-ready transforms: location = agent position; rotation faces the travel direction (holding the last facing while standing still) unless a facing target overrides it, always turning at Turn Rate, tilted to the ground normal when Align Transforms To Ground; scale = Transform Scale on every axis. See Rendering Agents.

TArray<FVector> GetAgentGroundNormals(const TArray<int32>& Indices) const;

Last traced ground normal per agent (world up until a trace has hit). See Ground Snapping.

TArray<FVector> GetAgentTargets(const TArray<int32>& Indices) const;

Each agent's individual formation slot position.

TArray<FVector> GetAgentNavGoals(const TArray<int32>& Indices) const;

The shared formation anchor the group is routing toward.

TArray<FVector> GetAgentVelocities(const TArray<int32>& Indices) const;

Current velocities - use the magnitude to drive idle/walk/run animation.

TArray<bool> GetAgentSettled(const TArray<int32>& Indices) const;

Latched settle (arrived) state per agent.

TArray<float> GetAgentSpeeds(const TArray<int32>& Indices) const;

Effective max speed per agent - the per-agent override where set, otherwise the Speed config value.

TArray<float> GetAgentRadius(const TArray<int32>& Indices) const;

Effective radius per agent - the per-agent override where set, otherwise the Radius config value.

TArray<int32> GetAgentTeams(const TArray<int32>& Indices) const;

Each agent's team id. Agents spawn on team 0.

Selection queries

Return indices into the position array. The screen-rect query is the marquee-select replacement; doing it per agent in a Blueprint loop costs a visible hitch at high counts.

Every query below takes a Teams array: pass an empty array for every agent, or a list of team ids to keep only agents on those teams.

TArray<int32> GetAgents(const TArray<int32>& Teams) const;

Every agent, or every agent on one of Teams.

TArray<int32> GetAgentsInRect(const FBox2D& Rect, const TArray<int32>& Teams) const;

Every agent inside the world-space XY rectangle.

TArray<int32> GetAgentsInRadius(const FVector& Center, float Radius,
                                const TArray<int32>& Teams) const;

Every agent within Radius of Center on the XY plane (Center.Z ignored).

TArray<int32> GetAgentsInScreenRect(APlayerController* PlayerController,
                                    const FVector2D& ScreenMin,
                                    const FVector2D& ScreenMax,
                                    const TArray<int32>& Teams) const;

Every agent whose position projects inside the screen-space rect [ScreenMin, ScreenMax] (inclusive) for the given player - marquee selection in one call. Projection uses each agent's tracked Z, so it matches what the player sees.

TArray<int32> FilterAgents(const TArray<int32>& Indices,
                           const TArray<int32>& Teams) const;

Keep only the agents in Indices that are on one of Teams, preserving order and dropping out-of-range entries. For narrowing a selection you already have rather than running a fresh spatial query.

int32 GetNearestAgent(const FVector& Center, float Radius,
                      const TArray<int32>& Teams, float& OutDistance) const;

Closest agent to Center on the XY plane, or -1 if none qualifies. Radius <= 0 searches everywhere. The "find me a target" call - closest enemy to this unit, closest friendly to this healer.

Orders

void SetAgentsTarget(const TArray<int32>& Indices, const FVector& Position,
                     ECrowdToolkitFormationAnchor Anchor = ECrowdToolkitFormationAnchor::NearEdge);

Order Indices into a formation at Position. The core movement call. Replacing an unfinished order fires OnAgentsOrdersCanceled for the affected agents.

Anchor decides where the group sits relative to Position:

Value	Layout
`Near Edge` (default)	Front of the formation on `Position`, body trailing back toward the group.
`Center`	Middle of the formation on `Position`.

See Anchor.

void SetAgentTarget(int32 Index, const FVector& Position,
                    ECrowdToolkitFormationAnchor Anchor = ECrowdToolkitFormationAnchor::NearEdge);

Single-agent convenience - a formation of one, so the agent simply walks to the point.

Per-agent speed

On top of the global Speed default, you can cap individual agents.

void SetAgentsSpeed(const TArray<int32>& Indices, float Speed);
void SetAgentSpeed(int32 Index, float Speed);

Set the max-speed override. Speed < 0 resets the agents to the global Speed config value; Speed >= 0 is an absolute per-agent cap (0 freezes them in place). Read the effective values back with GetAgentSpeeds.

Per-agent radius

On top of the global Radius default, individual agents can be resized. The per-agent radius drives avoidance, wall collision, and formation slots - each slot is sized to its agent, with big agents forming up front and centre. Pathfinding always uses the global Radius, so an agent set larger than it can be routed through gaps too narrow for its body - keep Radius close to your largest agent when the map has tight passages.

void SetAgentsRadius(const TArray<int32>& Indices, float Radius);
void SetAgentRadius(int32 Index, float Radius);

Set the radius override. Radius < 0 resets the agents to the global Radius config value. Read the effective values back with GetAgentRadius.

Teams

Each agent carries one team id, used to filter selection queries and to override avoidance between team pairs. Full guide in Teams.

void SetAgentsTeam(const TArray<int32>& Indices, int32 Team);
void SetAgentTeam(int32 Index, int32 Team);

Assign the team. Any integer works, including negatives - the numbers are yours to define. Agents spawn on team 0. Read them back with GetAgentTeams.

Team avoidance

Override the global Strength and Settle Push for one pair of teams. Rules are symmetric - (1, 2) and (2, 1) are the same rule - and passing the same team twice sets the rule within that team.

void SetTeamAvoidance(int32 TeamA, int32 TeamB, float Strength, float SettlePushStrength);

Each value is read independently:

Value	Meaning
`< 0`	Follow the matching global slider, and keep tracking it if you change it later.
`0`	Disable that push for this pair.
`> 0`	Use this value instead of the global one.

Both 0 makes the two teams ignore each other and walk straight through one another.

Crowd->SetTeamAvoidance(1, 2, 0.0f, -1.0f);  // no jostling in transit, still steps aside when idle
Crowd->SetTeamAvoidance(1, 1, 60.0f, -1.0f); // team 1 packs tightly among itself

TIP

SettlePushStrength maps to the Settle Push config property. The pin is named differently because Unreal doesn't allow a function parameter to shadow a property name.

void ClearTeamAvoidance(int32 TeamA, int32 TeamB);
void ClearAllTeamAvoidance();

Drop one pair's rule, or every rule. Cleared pairs fall back to the global values.

bool GetTeamAvoidance(int32 TeamA, int32 TeamB,
                      float& OutStrength, float& OutSettlePushStrength) const;

Returns false when no rule is set for the pair, in which case both outputs read -1.

TIP

Use this for mixed-speed groups (cavalry vs infantry), slows/buffs, or freezing units in place without removing them.

Facing targets

By default an agent's rendered facing follows its travel direction. A facing target overrides that: the agent's facing steers toward a world position - at Turn Rate, so it swings around instead of snapping - whether the agent is moving, settled or idle. It affects rendering only: the rotation from GetAgentTransforms changes, while pathing, velocity and avoidance are untouched, so agents can walk one way and face another.

void SetAgentsFacingTarget(const TArray<int32>& Indices, const FVector& Target);
void SetAgentFacingTarget(int32 Index, const FVector& Target);

Steer the agents' facing toward Target (on the XY plane - Target.Z is ignored). The target is stored against each agent's stable id, so it survives index reshuffles and persists until cleared or the agent is removed. An agent standing (nearly) on its facing target holds its current facing instead of spinning. Out-of-range indices are ignored.

TIP

Classic uses: units keeping their front toward the enemy while repositioning, guards watching a gate, a crowd turning toward a speaker.

void ClearAgentsFacingTarget(const TArray<int32>& Indices);
void ClearAgentFacingTarget(int32 Index);

Remove the override. Facing goes back to following the travel direction (still turn-rate limited), holding its last direction while the agent stands still.

Walls

See Wall Generation.

void AddWallTile(int32 X, int32 Y);

Block the wall-grid tile at (X, Y). Idempotent - adding an existing tile is a no-op.

void RemoveWallTile(int32 X, int32 Y);

Unblock the tile at (X, Y); affected routes re-plan on the next tick. A tile the nav-mesh sync owns comes back on its next run if the nav mesh still blocks that spot.

void ClearWallTiles();

Drop every wall tile, including nav-mesh-generated ones.

TArray<FIntPoint> GetWallTiles() const;

Every blocked wall tile, as grid coordinates.

int32 GenerateWallTiles();

Generate walls using the selected Wall Generation Method (None is a no-op). Called once on BeginPlay; returns the number of tiles added.

int32 GenerateWallTilesFromNavMesh();

Sync the wall grid to the world's built navigation mesh (see Seeding walls from the nav mesh): newly blocked cells are added, and cells the nav mesh freed since the last run are removed. Only tiles this function created are ever removed, so manually stamped walls survive. Runs automatically after runtime nav rebuilds when Sync Walls With Nav Mesh is on. Returns the number of tiles changed.

Events

Multicast delegates - bind in Blueprint or C++. Full timing and usage in Events.

Event	Delivers	When
OnAgentsSpawned	indices	before the tick that adds them
OnAgentsRemoved	indices	before the tick that removes them (indices still valid)
OnAgentsReachedGoal	indices	after a tick, once per arrival
OnAgentsStuck	indices	after a tick, repeating while stuck
OnAgentsOrdersCanceled	indices	after a tick, when an order is replaced

Debugging & diagnostics

Tick any of the debug flags (Draw Walls, Draw Agents, Show Slots, Show Nav Goals, Show Velocity, Show Flow Field, Show A* Paths) to draw that overlay into the world. There is no master switch; untick them all to draw nothing.

Keep the overlays off when measuring performance - the agent overlays fetch every agent array and issue per-agent debug primitives, which dominates the frame at high agent counts. They are compiled out entirely in Shipping builds.

int32 GetFlowFieldCount() const;   // number of cached flow fields
int64 GetFlowFieldBytes() const;   // their total memory

The cache grows with the world region the agents span - handy for understanding memory under Flow Field navigation.
